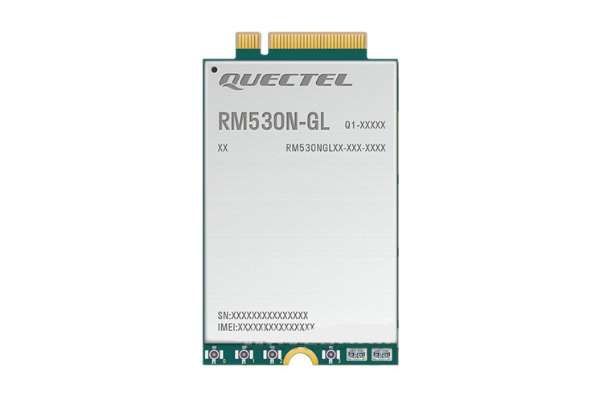

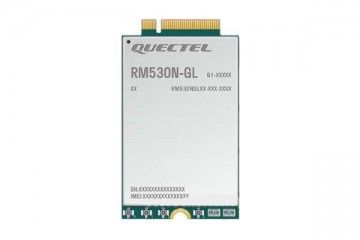

5G Sub-6G & mmWave Module, M.2 Form Factor With 3GPP 5G Release 16 Specification
The RM530N-GL is a 5G Sub-6GHz module specially optimized for IoT/eMBB applications. Adopts 3GPP Release 16 specification and supports 5G non-standalone (NSA) and standalone (SA) modes. Designed in an M.2 form factor, RM530N-GL is compatible with Quectel RM520N 5G module series, easy for users to design the devices with single Sub-6 support or both Sub-6 & mmWave support. This module is an industrial-grade module for industrial and commercial applications only.
The RM530N-GL series nearly covers all the mainstream carriers worldwide. The integrated multi-constellation high-precision GNSS receiver (supports GPS, GLONASS, BDS and Galileo) greatly simplifies the product design and provides quicker, more accurate positioning capability.
Built in a rich set of network protocols, integrates multiple industry-standard interfaces and supports multiple drivers and software functions (USB/PCIe drivers for Windows 7/8/8.1/10, Linux, and Android), which can be adopted in a wide range of eMBB and IoT applications including industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, video surveillance and digital signage.
5G SUB-6 | RM500U-CN | RM500Q-GL | RM502Q-AE | RM520N-GL | RM530N-GL | |
---|---|---|---|---|---|---|
5G Standard | 3GPP R15 | 3GPP R16 | ||||
5G | Sub-6 GHz | Sub-6G & mmWave | ||||
Region / Provider | China | Global (except US) | Global (except China) | Global | ||
Operating temperature | -30 °C ~ +75 °C | |||||
Extension temperature | -40 °C ~ +85 °C | |||||
Dimensions | 30.0 × 52.0 × 2.3 (mm) | |||||
Weight | 8.9 (g) | 8.7 (g) | 8.8 (g) | |||
Power supply | 3.3~4.4 V, typical 3.7 V | 3.135~4.4 V, typical 3.7 V | ||||
Power consumption | 90 μA @ shutdown 3.7 mA @ hibernate TBD @ USB 2.0, idle TBD @ USB 3.0, idle |
70 μA @ shutdown 4.0 mA @ hibernate 32 mA @ USB 2.0, idle 54 mA @ USB 3.0, idle |
80 μA @ shutdown 4.2 mA @ hibernate 39 mA @ USB 2.0, idle 54.5 mA @ USB 3.0, idle |
195 μA @ shutdown 4.7 mA @ hibernate 41 mA @ USB 2.0, idle 60 mA @ USB 3.0, idle |
173 μA @ shutdown 5.1 mA @ hibernate 51 mA @ USB 2.0, idle 69 mA @ USB 3.0, idle |
|
FREQUENCY BAND | ||||||
5G | 5G NR | - | n257, n258, n260, n261 | |||
5G NR NSA | n41, n78, n79 | n41, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | ||
5G NR SA | n1, n28, n41, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48*, n66, n71, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |||
LTE | LTE-FDD | B1, B2, B3, B5, B7, B8, B20, B28 | B1, B2, B3, B4, B5, B7, B8, B12(B17), B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | |||
LTE-TDD | B34, B38, B39, B40, B41 | B34, B38, B39, B40, B41, B42, B43, B48 | ||||
LAA | - | B46 | ||||
UMTS | WCDMA | B1, B2, B5, B8 | B1, B2, B3, B4, B5, B6, B8, B19 | B1, B2, B4, B5, B8, B19 | ||
GNSS | - | GPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (only supported by RM520N-GL and RM530N-GL) | ||||
DATA RATE | ||||||
5G mmWave | - | downlink 4 Gbps; uplink 1.4 Gbps |
||||
5G SA Sub-6 | downlink 2 Gbps; uplink 1 Gbps |
downlink 2.1 Gbps; uplink 900 Mbps |
downlink 4.2 Gbps; uplink 450 Mbps |
downlink 2.4 Gbps; uplink 900 Mbps |
||
5G NSA Sub-6 | downlink 2.2 Gbps; uplink 575 Mbps |
downlink 2.5 Gbps; uplink 600/650 Mbps |
downlink 5 Gbps; uplink 650 Mbps |
downlink 3.4 Gbps; uplink 550 Mbps |
||
LTE | downlink 600 Mbps; uplink 150 Mbps |
downlink 1.0 Gbps; uplink 200 Mbps |
downlink 2 Gbps; uplink 200 Mbps |
downlink 1.6 Gbps; uplink 200 Mbps |
||
UMTS | downlink 42.2 Mbps; uplink 11 Mbps |
downlink 42 Mbps; uplink 5.76 Mbps |
Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer
Laptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage...
