4INCH DSI ROUND TOUCH DISPLAY, 720 × 720, IPS, 10-POINT TOUCH, WAVESHARE 24603
- Zaloga NE
- Znamka: WAVESHARE
- Id številka: 3878/

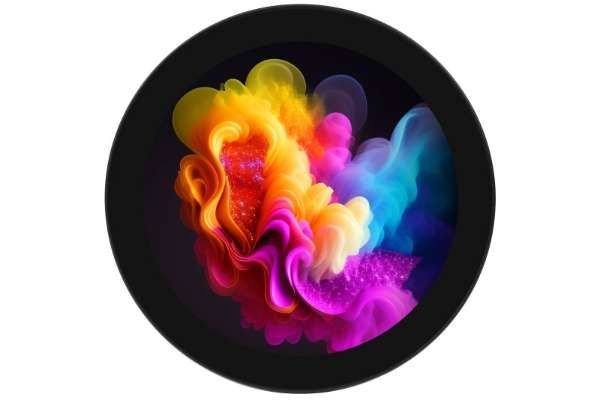

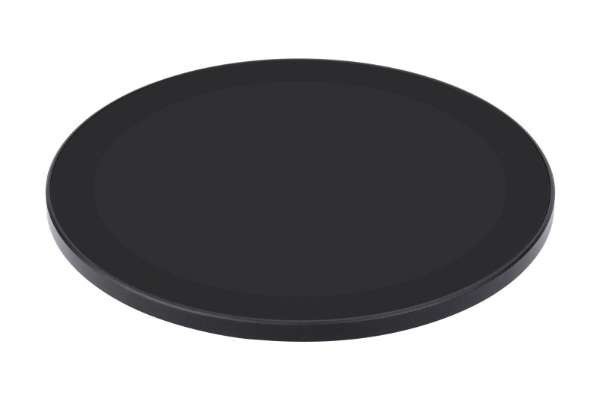

4″ Round Touch Display
High Resolution | Multi-Touch | Full Color
- Size
4″ - Resolution
720×720 - Display Interface
DSI - Display Panel
IPS - Viewing Angle
170° - Touch Type
Capacitive - Touch Points
10-Point - Touch Interface
I2C - Touch Panel
Toughened Glass - Touch Panel Tech
Optical Bonding
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver required
Supports Pi 4B/3B+/3A+, CM3/3+/4*
* some CM3/3+/4 base boards require extra adapter cable
Connection Examples
Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
for reference only, the Raspberry Pi boards are NOT included.
IPS Display Panel
Excellent Display Performance With 170° Wide Viewing Angle
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Adjustable Brightness Via Software

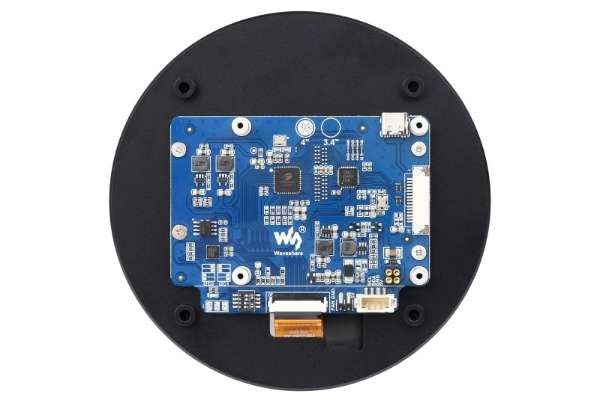

Interface Introduction
Application Examples
Smart Home
In-vehicle Devices
Consumer Electronics
Industrial Equipments
Product Show
Dimensions
Specifikacije
Glavno
Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI
Dimenzije
Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
