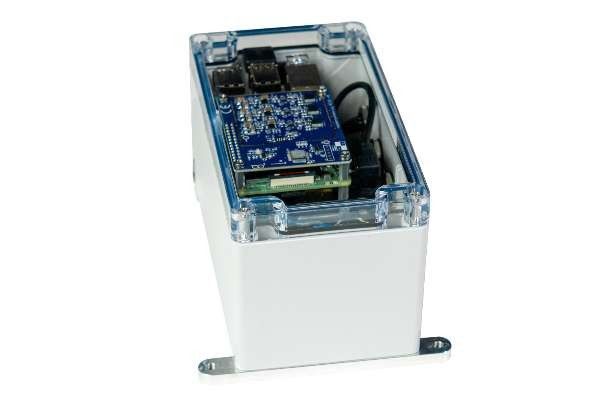

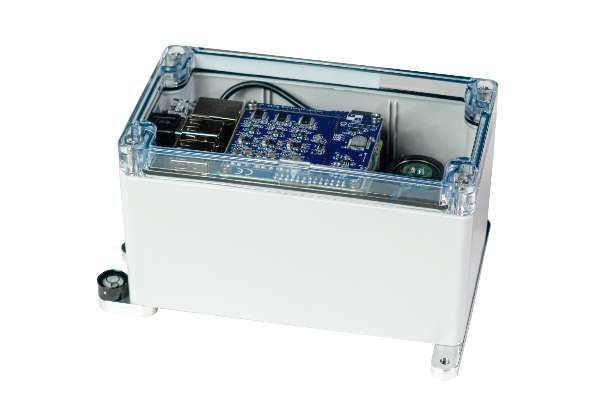

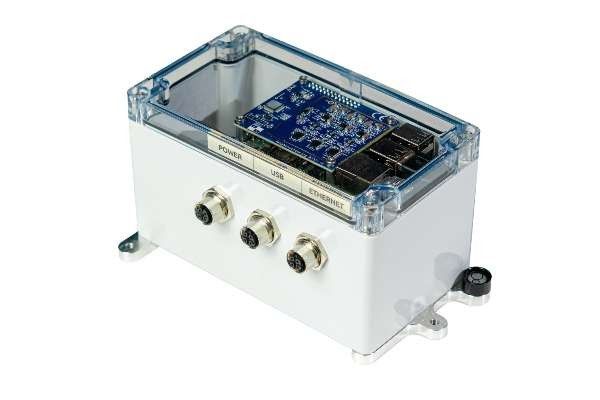

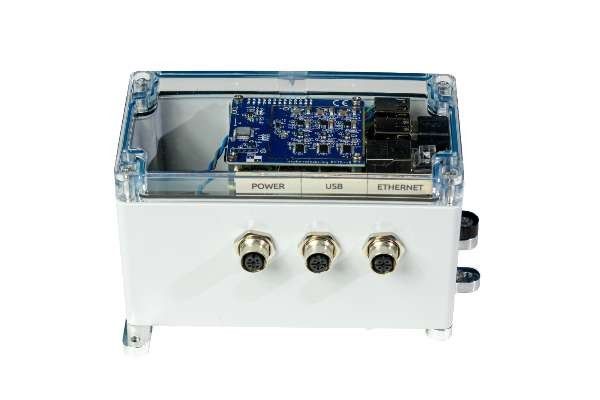

RS3D, VERTICAL & LATERAL MOTION SEISMOGRAPH, OUTDOOR, ALL OTHER USE CASES, RASPBERRY PI SHAKE PR-RS-RS3D-AW LP

Overview:

The RS3D is a highly accurate seismograph designed to capture ground motion velocity across three axes—vertical (up-down), north-south, and east-west. Providing a comprehensive, triaxial view of both local and global seismic events, the RS3D equips researchers with a powerful tool for studying seismic waves in greater detail. Whether used for personal research, educational purposes, or professional seismic monitoring, the RS3D ensures superior data accuracy.

Key Features:

• Three orthogonally positioned geophone velocity sensors (vertical, north-south, east-west)
• Millisecond-level accuracy for high-quality data
• 100 samples per second for precise seismic readings
• Compatible with Earthquake Early Warning Systems
• Compact, portable, and integrated design

Why Choose the RS3D?

The RS3D offers unmatched capabilities in capturing S-waves and other seismic movements across all three axes, providing a complete 3D view of ground motion. With its high-precision geophones and low noise floor, the RS3D guarantees accurate measurements of local micro-seismic events as well as large, distant earthquakes. The dynamic range and minimal error potential make it an ideal choice for serious enthusiasts, seismologists, and professionals.

The RS3D’s design ensures sensitivity to low frequencies and a wide dynamic range, allowing it to precisely capture all seismic activities, no matter the magnitude. Its ease of integration into seismic networks, portability, and superior data quality make it a crucial tool for monitoring all types of seismic activity.

• 1x Raspberry Shake 3D circuit board (datalogger/ digitizer)

• 3x Earth motion monitoring sensors with cables

• 1x Raspberry Pi single-board computer
• 1x 8 GB pre-programmed Micro SD Card
• 1x Ethernet Cable, 3 meters long
• 1x 5V 2.5 Amp power supply, 1 meter long (Plug types supported: A, C, G, I)
• 1x IP67 Enclosure

• 1x USB cable, 1 meter long

• 1x Aluminium mounting and levelling base

TECHNICAL SPECIFICATIONS
