RASPBERRY PI 500 DE, UNIT ONLY, RASPBERRY PI SC1232

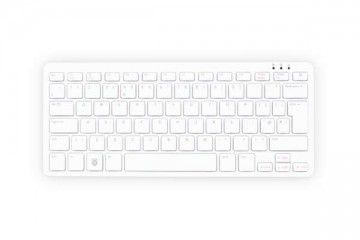

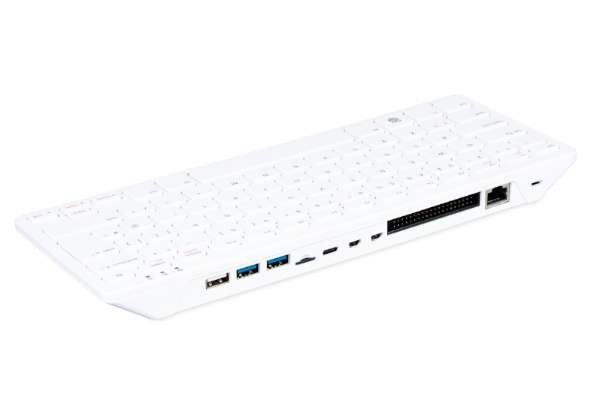

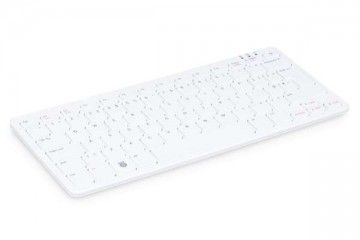

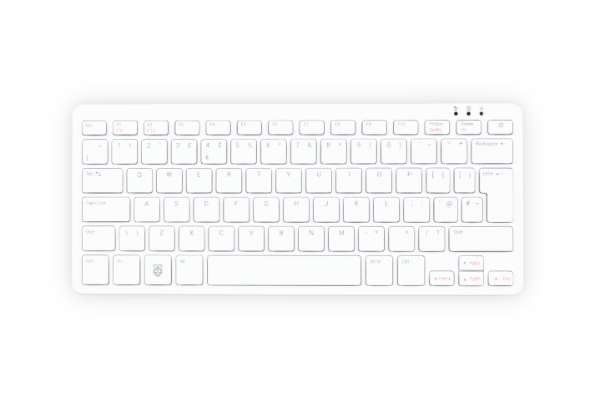

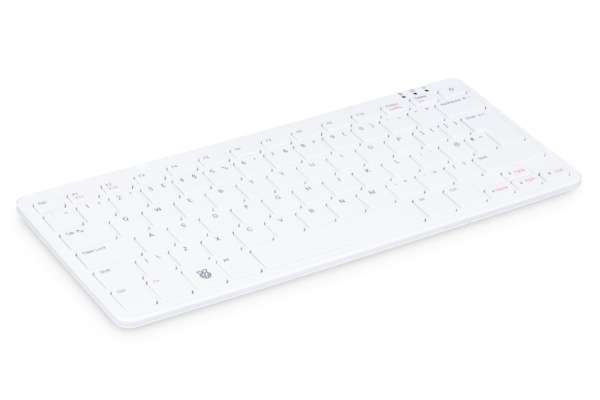

Building on the success of the Raspberry Pi 400, the new Raspberry Pi 500 is a fully integrated personal computer, based on the Raspberry Pi 5 and cleverly incorporated into a keyboard.

Key Specifications:

CPU: Equipped with a 2.4GHz quad-core, 64-bit Arm Cortex-A76 processor, featuring 512KB L2 caches and a 2MB shared L3 cache for enhanced processing power.

GPU: VideoCore VII for robust graphics performance.

Memory: 8GB of high-speed LPDDR4X-4267 SDRAM.

Connectivity:

•   Dual-band 2.4 GHz and 5.0 GHz 802.11ac Wi-Fi for fast and reliable wireless connections.
•   Bluetooth 5.0 and Bluetooth Low Energy (BLE) for versatile wireless connectivity.
•   Storage: Micro SD card slot supporting high-speed SDR104 mode and the command queuing extension to optimize access and data transfer.

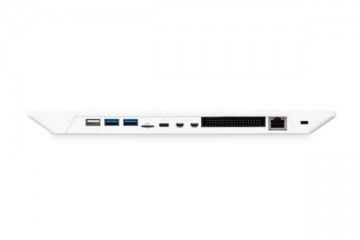

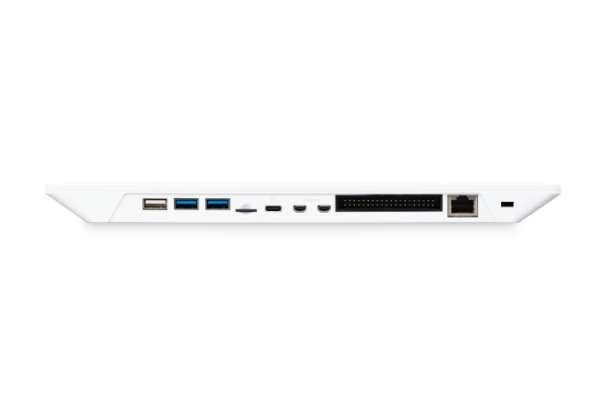

•   USB Ports: Two USB 3.0 ports allowing for simultaneous 5Gbps operations, and one USB 2.0 port.
•   Networking: Gigabit Ethernet for high-speed wired network connections.
•   Video Output: Dual micro-HDMI ports support multiple displays.
•   Expansion: 40-pin GPIO header for attaching a variety of hardware components.
•   Security: Kensington lock slot for physical security.
•   Power Supply: Powered by a separate 5V/5A DC via USB-C, ensuring ample power for all operations.
•   Additional Features: Includes a power button on the keyboard for convenience and easy management.

The Raspberry Pi 500 redefines the possibilities of integrated personal computing by merging high-performance components with the practicality and convenience of a keyboard-based setup.

Links: Product_Brief (PDF)
