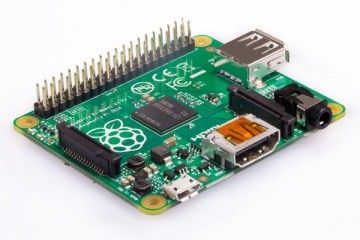

RASPBERRY-PI , RASPBERRY PI, MODEL A+, 256MB, RASPBRRY-MODA+-256M SBC

30,44 €

Broadcom BCM2835 700MHz ARM1176JZFS processor with FPU and VideoCore IV dual-core GPU

GPU provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode

GPU is capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure

256MB SDRAM (Model A+)

HD 1080p video output

Composite video (PAL/NTSC) output

Stereo audio output

10/100 BaseT RJ45 Ethernet socket (Model B+)

HDMI 1.3 & 1.4 video/audio socket

3.5mm 4-pole audio/composite video out jack socket

4 x USB 2.0 sockets (Model B+), 1 x USB 2.0 socket (Model A+)

15-way MPI CSI-2 connector for Raspberry Pi HD video camera (775-7731)

15-way Display Serial Interface connector

MicroSD card socket

Boots from MicroSD card, running a version of the Linux operating system (See Note below)

40-pin header for GPIO and serial buses (compatible with Raspberry Pi Model A/B 26-pin header)

Header footprint for JTAG connector

Power supply: +5V @ 2A via microUSB socket

Dimensions: 86 x 56 x 20mm (Model B+) 66 x 56 x 14mm (Model A+)

Firmware now looks for add-on boards that comply with the HAT (Hardware Attached on Top) design rules. This allows the Raspberry Pi A+/B+ to set up the GPIO and load drivers to suit an expansion board automatically.





Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
