SPARKFUN BAROMETRIC PRESSURE SENSOR BREAKOUT - MPL115A1, SPARK FUN 09721

  • Zaloga DA, 2 kos/ov
  • Znamka: SPARKFUN
  • Id številka: 986/54
20,35 €

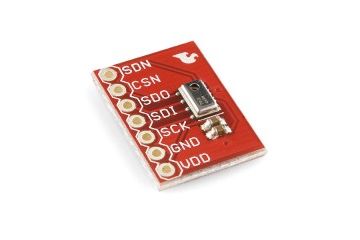

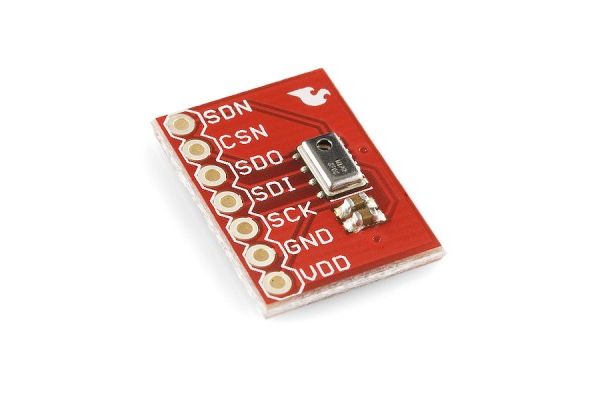

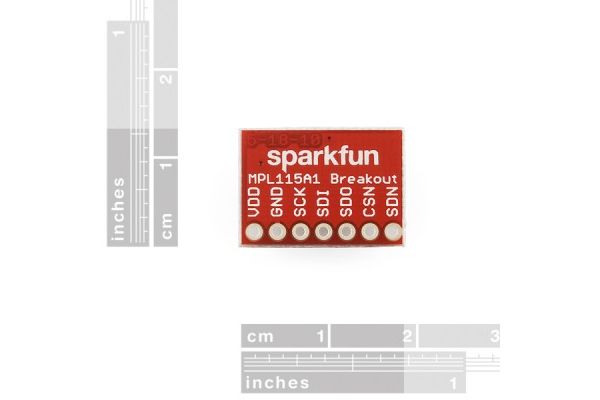

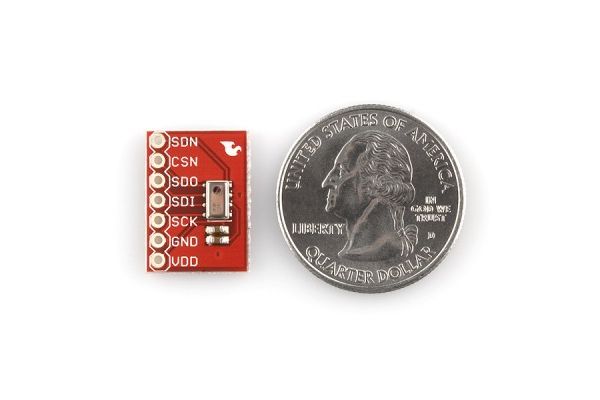

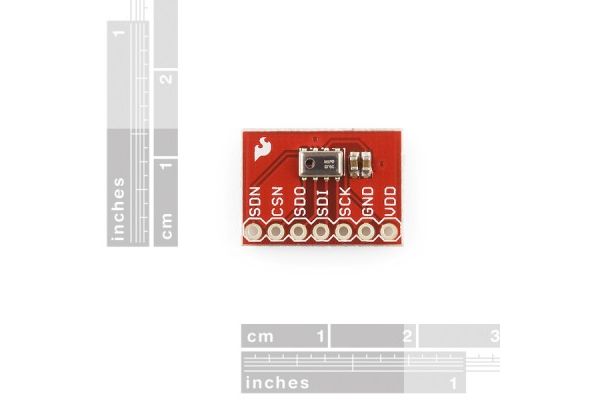

Description: Now mounted on a breakout board, the MPL115A1 is a digital barometer that uses MEMs technology to give accurate pressure measurements between 50kPa and 115kPa. We stock the SPI interface version of the sensor. Average current consumption is 10µA at one measurement per second.



The sensor outputs both temperature and pressure readings on the SPI bus. See page 3 of the datasheet for information on how to take readings from the pressure sensor.



Features:

- Wide supply voltage range

- -40°C to 105°C maximum temperature range

- Low power consumption

- kPa accuracy



Dimensions:

- 5x3 mm (1.2mm height)



Documents:

- Datasheet

- Schematic

- Eagle Files

- Example Code

GitHub

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
