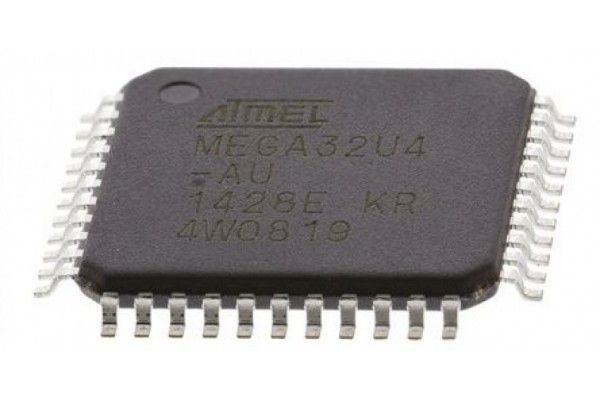

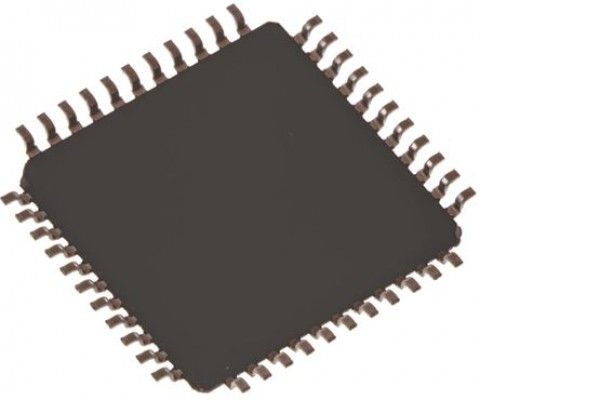

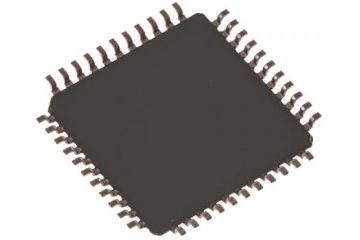

ATMEGA32U4-AU, 8BIT AVR MICROCONTROLLER, 16MHZ, ATMEL, ATMEGA32U4-AU

  Id številka: 1190
Znamka:ATMEL
Zaloga:   DA
Dobava:3 dni
Cena:7,27 €
microcontrollers ATMEL ATMEGA32U4-AU, 8bit AVR Microcontroller, 16MHz, Atmel, ATMEGA32U4-AU
microcontrollers ATMEL ATMEGA32U4-AU, 8bit AVR Microcontroller, 16MHz, Atmel, ATMEGA32U4-AU






Product Details



The Atmel ATmega32U4 Microcontroller is an 8-bit megaAVR device based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle the ATmega32U4 achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and speed.



The ATmega32U4 features a USB 2.0 Device Module making it an ideal candidate for applications requiring USB connectivity. Also integrated is a JTAG interface for on-chip debug.



Microcontroller Features



16 MHz Max. Operating Frequency

Up to 16 MIPS at 16 MHz

32 KB Flash

1024 B EEPROM

2.5 KB SRAM

135 Instructions – Most single clock cycle execution

32 General Purpose Registers

26 GPIO

Power-on Reset and Programmable Brown-out Detection

Internal 8 MHz Calibrated Oscillator

Internal Clock Prescaler and On-the-fly Clock Switching

External and Internal Interrupt Sources

Six Power-Saving Sleep Modes

Internal and External Interrupts

Fully Static Operation

On-Chip 2-cycle Multiplier



Communication Features



USB 2.0 Full-speed/Low Speed Device Module

JTAG (IEEE1149.1 compliant) Interface

Programmable Serial USART with Hardware Flow Control

Master/Slave SPI Serial Interface

Byte Oriented 2-wire Serial Interface



Peripheral Features



On-chip PLL for USB and High-Speed Timer

10-bit Analogue-to-Digital Converter (ADC) – 12 Channel

One 10-bit High-Speed Timer/Counter with PLL (64 MHz) and Compare Mode

One 8-bit Timer/Counter with Separate Prescaler and Compare Mode

Two 16-bit Timers/Counters with Separate Prescaler, Compare and Capture Mode

Four 8-bit PWM Channels

Four PWM Channels with Programmable Resolution from 2 bits to 16 bits

Six PWM Channels for High-Speed Operation, with Programmable Resolution from 2 bits to 11 bits

Output Compare Modulator

Programmable Watchdog Timer with Separate On-chip Oscillator

On-chip Analogue Comparator

Interrupt and Wake-up on Pin Change

On-chip Temperature Sensor
