10.1 INCH TFT, RESOLUTION 1280X800, MULTI-POINT CAPACITIVE TOUCH SCREEN, EDATEC ED-HMI3010-101C

  • Zaloga NE
  • Znamka: EDATEC
  • Id številka: 3828/
121,39 €




Description

  • 10.1" TFT, resolution 1280x800, multi-point capacitive touch screen
  • 1 x Gigabit ethernet port, 2 x USB 3.0, 2 x USB 2.0
  • Dual 4Kp60 HDMI display output
  • 5V DC power input via USB-C
  • Aluminum CNC + sheet metal case, fanless design, providing excellent cooling performance

RASPBERRY PI 5 NOT INCLUDED!

LCD:

  • Size: 10.1"
  • Resolution: 1280x800
  • Aspect ratio: 16:9
  • # of colors: 16.7M
  • Luminance (cd/m2): 250
  • Viewing angle (H/V): 160°/160°
  • Multi-touch (# of points): 10

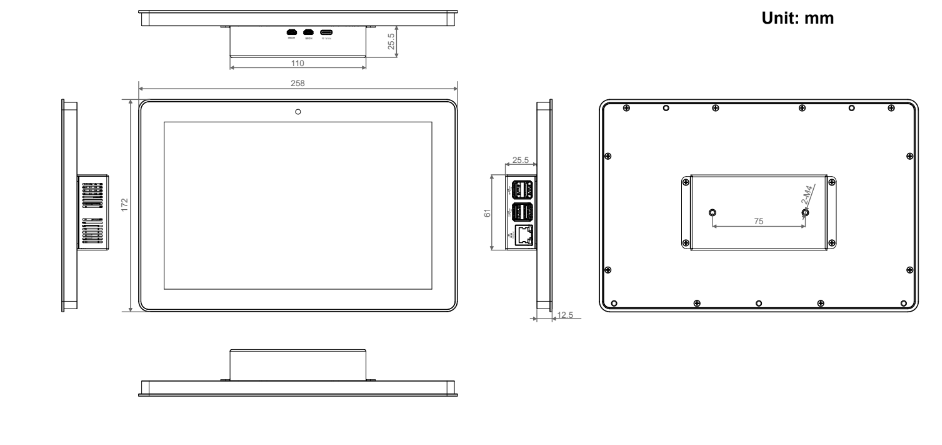

  • Dimensions (mm): 258 x 172 x 38
  • Weight: 900g

Touch Screen

  • Type Multi-point Capacitive Touch Screen
  • Transmittance ≥85%
  • Connection Method: COF
  • Controller Interface: I2C
  • Driver Support: Linux
  • Multi-touch: 10 points
  • Surface Hardness: 6H

Electrical Characteristics

  • Input Voltage: 5V DC
  • Power Consumption 25W(Max)

Wireless

  • Wi-Fi: Dual-band 802.11ac Wi-Fi
  • Bluetooth: Bluetooth 5.0 / Bluetooth Low Energy (BLE)

Packing List

  • 1 x ED-HMI3010-101C Unit
  • 4 x buckles(including 4xM4*8 screws and 4xM4*16 screws)

Links:



Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
