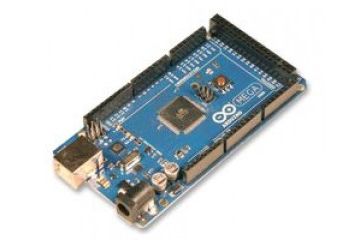

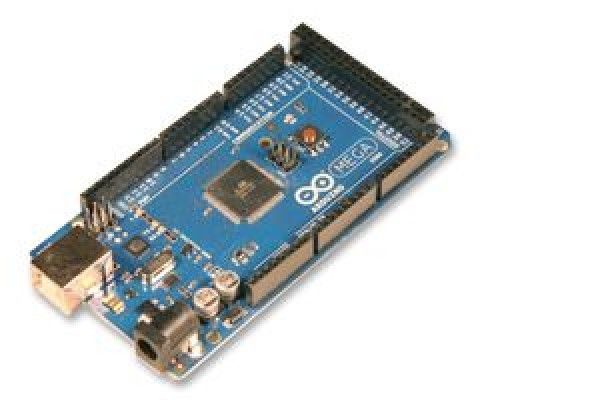

ARDUINO - ATMEGA2560, ARDUINO MEGA2560 REV3, BOARD, A000067

  Id številka: 51
Znamka:ARDUINO
Zaloga:   DA
Cena:55,90 €


The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Uno, Duemilanove or Diecimila.

The Mega 2560 is an update to the Arduino Mega, which it replaces.

Additional features coming with the R3 version are:

ATmega16U2 instead 8U2 as USB-to-Serial converter.

1.0 pinout: added SDA and SCL pins for TWI communication placed near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board and the second one is a not connected pin, that is reserved for future purposes.

stronger RESET circuit.



Technical Specifications

MicrocontrollerATmega2560Operating Voltage5VInput Voltage (recommended)7-12VInput Voltage (limits)6-20VDigital I/O Pins54 (of which 14 provide PWM output)Analog Input Pins16DC Current per I/O Pin40 mADC Current for 3.3V Pin50 mAFlash Memory256 KB of which 8 KB used by bootloaderSRAM8 KBEEPROM4 KBClock Speed16 MHzIf you want to give a closer look to this board we advice you to visit the official Arduino Mega 2560 page in the Hardware Section.



Technical specifications

Microcontroller - ATmega2560

Operating Voltage - 5V

Input Voltage (recommended) - 7-12V

Input Voltage (limit) - 6-20V

Digital I/O Pins - 54

PWM Digital I/O Pins - 14

Analog Input Pins - 16

DC Current per I/O Pin - 40 mA

DC Current for 3.3V Pin - 50 mA

Flash Memory - 256 KB

Flash Memory for Bootloader - 8 KB

SRAM - 8 KB

EEPROM - 4 KB

Clock Speed - 16 MHz

Lenght - 101.52 mm

Width - 53.3 mm





Links

Datasheet (ATmega2560)

Product Page
