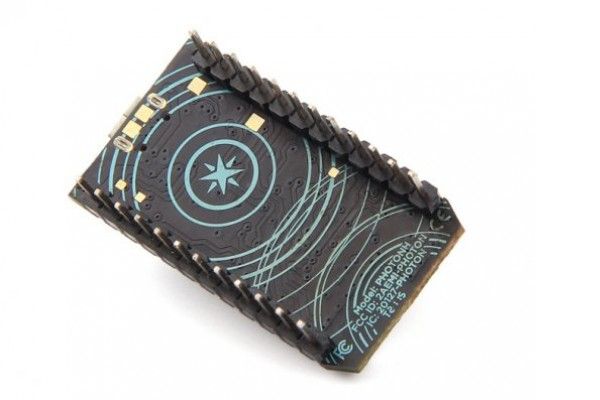

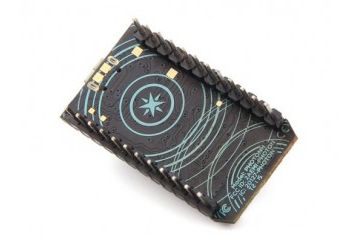

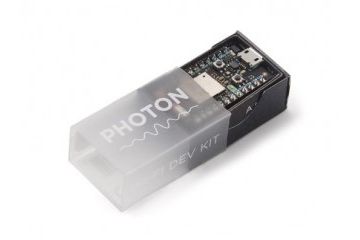

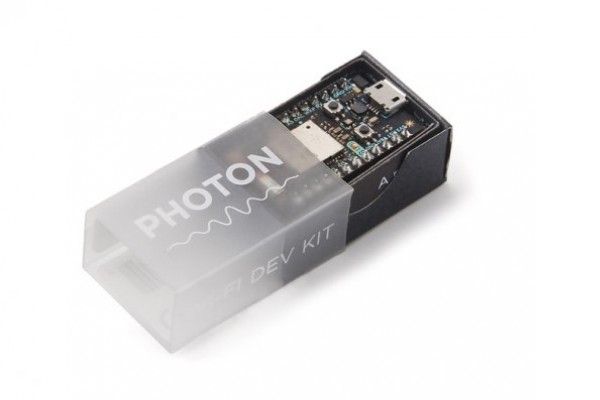

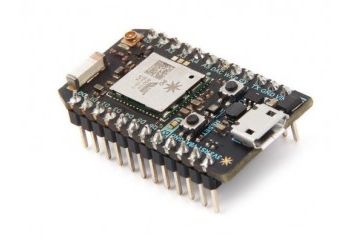

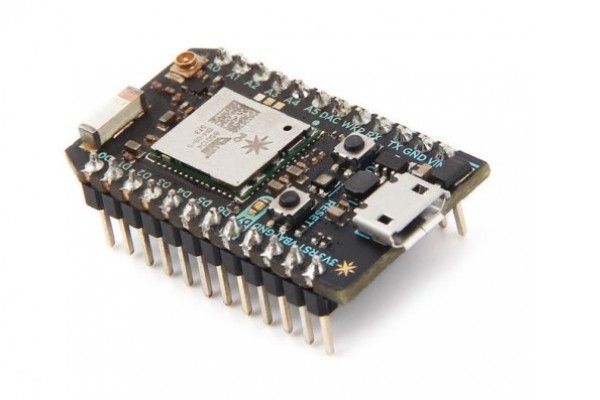

PARTICLE PHOTON WITH HEADERS

27,94 €

The Photon is a tiny Wi-Fi development kit for creating connected projects and products for the Internet of Things. It's easy to use, it's powerful, and it's connected to the cloud.



The tools that make up the Photon's ecosystem (and come along with the board) are designed to let you build and create whether you're an embedded engineer, web developer, Arduino enthusiast or IoT entrepreneur. You'll be able to write your firmware in our web or local IDE, deploy it over the air, and build your web and mobile apps with ParticleJS and our Mobile SDKs.



The board itself uses a Broadcom wi-fi chip (one that can be found in Nest Protect, LIFX, and Amazon Dash) alongside a powerful STM32 ARM Cortex M3 microcontroller. It's like the Spark Core. But better.



Does not ship with breadboard or USB cable. This board can ship with or without headers. Photons with headers are great for using with breadboards; Photons without headers are best for surface mounting and special applications.



SPECS:

- Particle P0 Wi-Fi module

- Broadcom BCM43362 Wi-Fi chip

- STM32F205 120Mhz ARM Cortex M3

- 1MB flash, 128KB RAM

- 802.11b/g/n

- Soft AP setup

- FCC/CE/IC certified

- Full specs here





Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
